510 Magnetic Adapters & Thread Extenders: Do You Need One?

The Tiny Accessories That Solve Big Problems

If you’ve been using a cart battery for a while, you’ve probably run into at least one of these situations: your cartridge won’t screw in properly, the threading feels sticky or gunked up, you’re constantly screwing and unscrewing carts and worrying about wearing out the threads, or you have an older eGo-threaded tank you want to use on your modern 510 battery.

Magnetic adapters and thread extenders are the cheap, simple accessories that fix all of these problems. They cost a few dollars, they last a long time, and once you start using one, you’ll wonder why you didn’t get one sooner.

This guide explains what each type does, when you actually need one (and when you don’t), and which ones we carry.

What Is a 510 Magnetic Adapter?

A 510 magnetic adapter is a small metal ring that screws onto the bottom of your oil cartridge. Once attached, the cartridge drops into your battery using magnetic force instead of threading — no screwing required.

How it works: The adapter has 510 threading on its inner side (which screws onto your cart’s bottom pin) and a magnetic connection on its outer side (which snaps into the battery’s housing). You screw the adapter onto your cart once, and from that point on, the cart just drops in and pops out magnetically.

Think of it like MagSafe for your cart. The magnetic connection is strong enough to hold the cart securely during use but easy enough to pull apart when you want to swap.

Why People Use Magnetic Adapters

Faster cart swaps. If you switch between cartridges throughout the day — maybe a sativa cart in the morning and an indica at night — magnetic connection lets you swap in seconds. No screwing, no cross-threading risk, no fumbling in the dark. Just pull one out and drop the other in.

Less wear on your battery’s threading. Every time you screw a cart in and out, you’re putting mechanical stress on the 510 threading inside your battery. Over months of daily use, those threads can wear down, loosen, or strip. A magnetic adapter eliminates that wear entirely because you’re only screwing the adapter onto the cart once — after that, the battery connection is magnetic with zero thread contact.

Required for certain batteries. Some batteries — particularly palm-style concealed batteries like the CCELL Fino — use magnetic connection as their primary method. The Fino comes with a magnetic 510 adapter in the box. If you lose it or want extras for multiple carts, you need replacement adapters.

Cleaner connection. When oil leaks from a cartridge (and it happens), it tends to seep into the 510 threading. With a magnetic adapter, the oil gets on the cheap, replaceable adapter — not on the battery’s built-in threading. You can clean or replace a $2 adapter much more easily than trying to clean gunk out of deep threading grooves.

Which Magnetic Adapter Do You Need?

The right adapter depends on your cartridge size and your battery:

510 Magnetic Adapter (0.5ml) — This is our bestselling adapter. It’s designed for standard 0.5ml cartridges and works with any battery that accepts magnetic drop-in connections. If you use half-gram carts with a concealed or palm-style battery, this is the one to get. Grab a few so you can keep one attached to each of your carts for instant swapping.

Cartisan Vape Magnet — A universal magnetic adapter from Cartisan that works across their battery lineup. If you have any Cartisan battery (like the Veil Bar Pro Evo or other Cartisan models), this is the matching replacement magnet.

Mystica Vaporizer Magnet — Replacement magnetic adapter for Mystica-style batteries. If you have an older Mystica or Mystica-compatible battery and need a new magnet, this is it.

What Is a 510 Thread Extender?

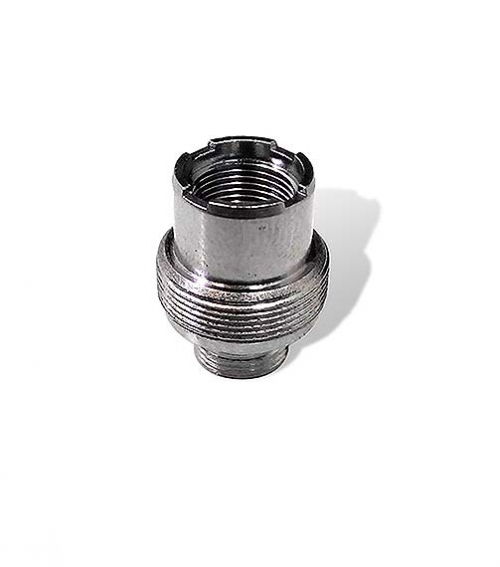

A 510 thread extender (also called a 510-to-eGo adapter) is a small chromed brass piece that screws onto the top of your 510 battery and serves as a bridge between the battery and your cartridge or atomizer.

It has 510 female threading on the inside (where your cart screws in) and eGo male threading on the outside (the wider threading standard used by older nicotine tanks and clearomizers).

Shop the 510 Thread Extender →

What Does It Actually Do?

The 510 thread extender serves three practical purposes:

1. Thread conversion (eGo devices on 510 batteries). This is the original purpose. If you have older eGo-threaded atomizers, clearomizers, or nicotine tanks (CE4, eVod, Mini Protank, etc.) and want to use them on a modern 510-threaded battery, the extender converts the threading so they’re compatible. It turns your 510 battery into a dual-use device that accepts both 510 and eGo connections.

2. Thread protection for your battery. This is the use case most cart battery owners care about. The extender acts as a sacrificial piece between your cartridge and your battery’s built-in threading. Instead of your cart screwing directly into the battery — where leaked oil, debris, and repeated use can damage the threading over time — everything screws into the cheap, replaceable extender. If it gets gunked up or the threads wear down, you replace a $2 adapter instead of buying a whole new battery.

3. Physical height extension. The extender adds a small amount of height between your cartridge and battery. This can improve airflow on certain batteries where the cart sits flush and restricts air intake, and it can help with fit on batteries that have tight or recessed 510 wells.

Who Needs a Thread Extender?

You probably need one if:

You have old eGo-threaded tanks or clearomizers you want to use on your 510 battery. You’re a heavy user who screws and unscrews carts multiple times a day and wants to protect your battery’s threading. Your battery’s threading already feels loose or worn — an extender gives you a fresh set of threads. You’ve had oil leak into your battery’s 510 connection and want a barrier to protect it going forward.

You probably don’t need one if:

You use a magnetic-connection battery (those already skip threading entirely). You rarely swap carts — if you screw one cart on and leave it until it’s empty, thread wear isn’t a concern. Your battery has a concealed cart chamber with its own magnetic or drop-in system.

At $1.99, it’s cheap enough that having one or two on hand is just smart maintenance — even if you don’t use it daily, it’s there when you need it.

Magnetic Adapter vs. Thread Extender: Which Do You Need?

These accessories solve different problems. Here’s a quick breakdown:

Bottom line: If your battery supports magnetic drop-in, get magnetic adapters. If your battery uses standard screw-in 510 threading, a thread extender is the smarter accessory for protection and versatility.

Some people use both — a thread extender on their pen-style battery for thread protection, and magnetic adapters for their concealed palm battery.

Common Questions

Will a magnetic adapter work on any 510 battery?

Not necessarily. Magnetic adapters are designed for batteries with magnetic drop-in wells — typically concealed/palm-style batteries where the cartridge slides down into the battery body. If your battery is a standard pen-style where the cart screws onto an exposed 510 thread on top, magnetic adapters won’t help. Those batteries need a thread extender instead (or just screw the cart on directly).

Can I use a magnetic adapter on a pen-style battery?

No. Pen-style batteries use direct 510 threading — the cart screws onto the top of the pen. There’s no magnetic well to drop into. For pen-style batteries, a 510 thread extender is the right accessory if you want thread protection.

Do magnetic adapters affect vapor quality?

No. The adapter makes the same electrical connection as direct threading — current flows through the center pin the same way. You won’t notice any difference in vapor production, flavor, or heating performance.

How do I know which size magnetic adapter to get?

Most standard 510 cartridges (0.5g and 1g) use the same adapter. Our 510 Magnetic Adapter fits standard-diameter carts. If you use oversized 2g+ cartridges, check that the adapter’s inner diameter can accommodate the wider cart body — though in most cases, 2g carts use the same 510 thread size at the bottom, so standard adapters still work.

My battery came with a magnetic adapter. Can I buy replacements?

Yes — that’s one of the most common reasons people buy these. Adapters are small and easy to misplace, especially if you take them off when you dispose of a finished cartridge and forget to save the adapter. Keeping a few spares around means you’re never stuck without one.

Does the thread extender add resistance or affect performance?

No. The chromed brass construction is highly conductive. The electrical path from your battery through the extender to your cartridge is essentially the same as a direct connection. You won’t notice any difference in performance.

Can I leave the thread extender on my battery permanently?

Yes, and many people do. Just screw it onto your battery and leave it there. Your carts screw into the extender instead of directly into the battery. It becomes a permanent part of your setup and protects your battery’s threading for the life of the device.

I have oil gunked up in my battery’s 510 threading. Will an extender fix that?

An extender will prevent future buildup, but you should clean the existing gunk first. Use a cotton swab dipped in isopropyl alcohol (70% or higher) to gently clean the threading and center pin. Let it dry completely, then attach the extender. Going forward, any oil that leaks will collect on the extender instead of in the battery. For a full cleaning routine, see our 510 Battery Maintenance Guide.

Adapter Care and Maintenance

Both magnetic adapters and thread extenders need occasional cleaning to maintain a good electrical connection.

Cleaning magnetic adapters: Wipe the magnetic contact surface and the 510 threading with a cotton swab dampened with isopropyl alcohol. Do this whenever you notice residue building up or if you experience a weak connection. Let the adapter dry completely before reattaching.

Cleaning thread extenders: Same process — cotton swab with rubbing alcohol on both the inner and outer threading. Pay attention to the center pin contact point, as oil residue here is the most common cause of connection issues.

When to replace: If a magnetic adapter loses its magnetic grip (rare), or if a thread extender’s threading becomes stripped or cross-threaded, replace it. At $2–5, these are consumable accessories designed to be replaced periodically so your battery doesn’t have to be.
