Vape Pen Blinking Light Guide (All Brands)
Vape Battery Blinking Light Fix: What Every Blink Pattern Means
Your vape battery is blinking and it won’t hit. Maybe it’s blinking red. Maybe it blinks 3 times and shuts off. Maybe the light is doing something you’ve never seen before.
Don’t panic — and don’t throw it away yet. Blinking lights are your battery’s way of communicating. Every pattern means something specific, and most of them have easy fixes.
This guide covers every common blink pattern across all major 510 thread battery brands. Find your symptom, understand what it means, and fix it in minutes.
🛒 Battery Beyond Repair? Reliable Replacements
- Best Overall: Yocan Kodo Pro — OLED screen shows exact status (no guessing blink codes), USB-C
- Best Simple: CCELL M3 — Auto-draw, no buttons, no blink confusion
- Best All-Day: Cartisan Black Box — 900mAh, clear LED indicators
Table of Contents
- Universal Blink Codes (Works for Most Batteries)
- What Blinking Colors Mean
- What Blink Counts Mean
- Cartisan Battery Blink Codes
- Ooze Battery Blink Codes
- Yocan Battery Blink Codes
- CCELL Battery Blink Codes
- Pulsar Battery Blink Codes
- Randy’s Battery Blink Codes
- The Universal Fix (Works 80% of the Time)
- Charging Light Indicators Explained
- When Blinking Means It’s Time to Replace
- FAQ
Universal Blink Codes (Works for Most 510 Batteries)
While every brand has slight variations, the vape industry has settled on fairly standard blink patterns. If you don’t know your specific brand’s codes, start here — these apply to roughly 90% of 510 thread batteries on the market.
| Blink Pattern | Universal Meaning | Fix |
|---|---|---|
| 3 blinks, then off | Short circuit or connection error | Unscrew cart, clean contacts (Q-tip + rubbing alcohol), reattach gently. Lift center pin with toothpick if pushed flat. |
| 5 blinks, then off | Power on/off confirmation | Normal! Your battery just turned on or off. 5 rapid clicks = power toggle on most batteries. |
| 8-10 blinks, then off | Dead battery | Charge immediately. Use included cable, standard 5V adapter. Wait 15 min if fully dead before expecting response. |
| 10+ rapid blinks | Auto-shutoff triggered (button held too long) | Release button. Take shorter draws (2-4 seconds max). Most batteries cut off at 8-10 seconds. |
| Continuous rapid blinking | Major error — short circuit, atomizer failure, or internal fault | Remove cart immediately. If blinking continues with no cart, battery may be damaged. |
| 3 blinks when pressing button | Voltage setting change (not an error) | Normal! You just changed your voltage. 3 clicks = cycle voltage on most batteries. Check LED color for current setting. |
| LED stays solid, then blinks | Battery firing, then low battery warning | Battery is low but still working. Charge soon. |
| No light at all | Battery completely dead or defective | Charge for 15+ min. If no response after 30 min on charger, try a different cable/adapter. If still nothing, battery is dead. |
What Blinking Colors Mean
Many batteries use colored LEDs to convey additional information. Here’s what the colors typically indicate:
During Use (While Firing)
| LED Color | Most Common Meaning | Notes |
|---|---|---|
| Green | Low voltage setting (2.4-2.8V) OR battery is fully charged | Context matters — during a hit, it’s voltage. While idle, it’s battery level. |
| Blue | Medium voltage setting (3.0-3.4V) OR medium battery | Some brands swap blue and green meanings. Check your manual. |
| White | Medium voltage (on some brands) OR max voltage | Common on Yocan and some Cartisan models. |
| Red | High voltage setting (3.6-4.2V) OR low battery warning | If red appears unexpectedly mid-hit, your battery is running low. |
| Purple/Pink | Preheat mode active | Some batteries use a unique color during preheat cycle. |
| Rainbow/Color cycling | Demo mode, party mode, or error | Some novelty batteries have RGB lighting. If unexpected, try 5 clicks to reset. |
During Charging
| LED Behavior | Meaning |
|---|---|
| Solid red / orange | Charging in progress (normal) |
| Solid green | Fully charged — unplug |
| Slow blinking red (every 1-2 sec) | Charging in progress (some brands blink instead of solid) |
| Rapid blinking while charging | Charging error — try different cable, clean port, check for damage |
| Light turns off completely | Fully charged (some brands turn off LED when done) |
| No light when plugged in | Not charging — bad cable, bad adapter, dirty port, or dead battery |
For complete charging instructions and troubleshooting, see our How to Charge a 510 Battery Guide.
What Blink Counts Mean
Beyond color, the number of blinks tells you something specific. Here’s the cheat sheet:
1 blink: Button pressed, battery firing (normal operation).
2 blinks: Preheat mode activated. Most batteries use 2 clicks to start a 10-15 second low-power warming cycle. The LED typically pulses or blinks slowly during preheat. This is normal — not an error. See our Preheat Function Guide for details.
3 blinks (then shuts off): Connection error or short circuit. The battery tried to fire but couldn’t deliver power to the cart. This is the most common error code. Fix: clean connections, lift center pin, reattach cart gently.
3 blinks (after 3 clicks): Voltage changed. Clicking the button 3 times cycles through voltage settings on most variable voltage batteries. The LED blinks in the new color to confirm. This is not an error — you just adjusted your setting.
4-5 blinks: Power on/off confirmation. Rapidly clicking 5 times toggles the battery on or off. The LED blinks to confirm the action. Some batteries blink 3 times for on and 5 for off (or vice versa).
8-10 blinks: Dead battery. The battery doesn’t have enough charge to fire. Plug it in immediately. For charging help, see our How Long to Charge Guide.
15-20 rapid blinks: Auto-cutoff activated. You held the button for longer than the safety limit (usually 8-10 seconds). The battery cut power to prevent overheating. Release the button and take shorter draws.
Cartisan Battery Blink Codes
Cartisan is one of the most popular cart battery brands. Here are their model-specific blink codes:
Cartisan Button Batteries (Evo 510, Pillar, Ego Series)
| Pattern | Meaning | Fix |
|---|---|---|
| 5 clicks → 3 blinks | Power on/off confirmed | Normal — battery just toggled power state |
| 3 clicks → color blink | Voltage changed | Normal — LED color shows new voltage level (Green = low, Blue = medium, Red = high) |
| 2 clicks → slow pulse | Preheat mode started | Normal — runs for 10-15 seconds at low power. Great for thick oils. |
| 3 blinks then dead | Short circuit / no cart detected | Clean 510 connection, reattach cart, lift center pin if needed |
| 10 blinks then dead | Low battery | Charge with included USB cable. Takes 60-90 min for full charge. |
| Continuous rapid blinks | Over-temperature protection or severe error | Remove cart, let battery cool 10 min. If persists, battery may be damaged. |
Cartisan Concealed Batteries (Black Box, Veil Bar, Inspector)
Cartisan’s stealth batteries like the Black Box and Inspector generally follow the same blink codes as their button models but with some differences. The Black Box uses the same 5-click on/off and 3-click voltage system. The Inspector is auto-draw with 3 voltage levels and preheat — 2 quick inhales activate preheat on some models. Consult the included quick-start card for your specific model.
Shop all Cartisan batteries.
Ooze Battery Blink Codes
Ooze batteries are among the most widely sold cart batteries. Here’s how their LED system works:
| Pattern | Meaning | Fix |
|---|---|---|
| 5 clicks → LED blinks | Power on/off | Normal operation |
| Green blink during hit | Voltage set to low (3.3V) | Normal — 3 clicks to change |
| Blue blink during hit | Voltage set to medium (3.8V) | Normal — 3 clicks to change |
| Red blink during hit | Voltage set to high (4.3V) OR low battery | If you didn’t set it to high, charge the battery |
| 20 blinks then off | Short circuit or no atomizer detected | Clean connections, reattach cart, try different cart |
| Blinking while plugged in | Charging — changes to solid green when full | Wait for solid green, then unplug |
Note: Ooze batteries are known for using 20 blinks (rather than the typical 3) to indicate connection errors. If your Ooze blinks 20 times and won’t fire, it’s almost always a connection issue — not a dead battery.
Yocan Battery Blink Codes
Yocan makes some of the most feature-rich cart batteries. Their OLED-equipped models (like the Kodo Pro) display text instead of blink codes, which eliminates guesswork. For non-OLED Yocan batteries:
| Pattern | Meaning | Fix |
|---|---|---|
| 5 clicks → LED blinks | Power on/off | Normal |
| 3 clicks → color change | Voltage adjusted | Normal — Green (low), Blue (med), White (high) on most models |
| 2 clicks → pulsing light | Preheat activated (15 sec) | Normal — warming up thick oil |
| Flashing 3 times then off | Connection error | Clean contacts, reattach cart |
| 10 blinks then off | Low battery | Charge via USB-C (most Yocan models) |
| OLED shows “No Atomizer” | Cart not detected (Kodo Pro) | Clean 510 connection, reattach cart |
💡 Tip: If you’re tired of guessing blink codes, the Yocan Kodo Pro has an OLED screen that displays voltage, battery percentage, puff count, and plain-text error messages. No more decoding colored lights.
CCELL Battery Blink Codes
CCELL batteries are known for simplicity. Most CCELL models (M3, Palm, Fino, KAP) use inhale-activation with minimal light codes:
| Pattern | Meaning | Fix |
|---|---|---|
| Solid light during inhale | Normal firing | Working correctly |
| Blinking during inhale | Low battery | Charge via USB-C |
| No light when inhaling | Dead battery or connection error | Charge. If charged, clean 510 connection and reattach cart. |
| Rapid blinking when plugged in | Charging error | Try different cable/adapter |
| Light on when plugged in → off | Charging → full | Unplug and enjoy |
Since most CCELL models are auto-draw (buttonless), there’s no 5-click on/off or voltage cycling to worry about. This simplicity is one reason CCELL batteries tend to have fewer user-reported issues.
Pulsar Battery Blink Codes
Pulsar makes cart batteries and bubblers. Their standard blink system:
| Pattern | Meaning | Fix |
|---|---|---|
| 5 clicks → LED flash | Power on/off | Normal |
| 3 clicks → color blink | Voltage changed | Normal — color indicates setting |
| 2 clicks → pulsing | Preheat mode | Normal — 15 sec cycle |
| Blinking when trying to fire | Connection issue or low battery | Clean contacts, charge if needed |
Pulsar’s bubbler batteries (DL series, DuploCart H2O) use the same blink system as their standard models.
Randy’s Battery Blink Codes
Randy’s batteries follow standard conventions with some model-specific features:
| Pattern | Meaning | Fix |
|---|---|---|
| 5 clicks → blink | Power on/off | Normal |
| 3 clicks → color change | Voltage adjusted | Normal |
| 3 blinks then off | Short circuit | Clean connections, try different cart |
| 10 blinks | Low battery | Charge via USB-C |
| LCD shows battery/voltage (Inspo+) | Digital display — no codes needed | Read the screen for exact info |
Like the Yocan Kodo Pro, the Randy’s Inspo+ Plus has an LCD screen that shows battery level, voltage, and puff count in plain text — making blink codes unnecessary.
The Universal Fix (Works 80% of the Time)
No matter what brand you have, this 60-second procedure fixes the vast majority of blinking issues. Do this before anything else:
The 60-Second Fix:
- Remove the cartridge — unscrew it completely from the battery.

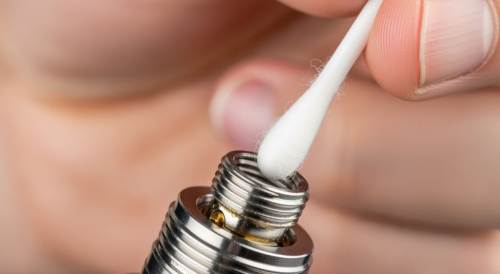

- Clean the battery connection — dip a Q-tip in rubbing alcohol (70% isopropyl or higher) and gently clean the 510 threading and the small center pin at the top of the battery.
- Clean the cart connection — same thing on the bottom contact of your cartridge.
- Lift the center pin — if the pin at the top of your battery looks pushed down (flush with the threading), use a toothpick to gently lift it up about 1mm. Just enough to make contact with the cart.
- Let everything dry — wait 2-3 minutes for the rubbing alcohol to evaporate.
- Reattach the cart — screw it back on finger-tight only. Do NOT overtighten. When you feel resistance, stop. Overtightening is one of the top causes of connection errors.
- Try firing — press the button or inhale (auto-draw).
If the blinking stops and you get vapor, you’re good. The problem was a dirty or improperly seated connection — the most common cause of blinking errors across all brands.
Still blinking? Try these additional steps:
- Try a different cart. If the second cart works, the original cart is the problem.
- Charge the battery. Blinking often means low power. Plug in for 30-90 minutes.
- Check for physical damage. Dents, cracks, or a swollen body mean the battery is done.
For the full rundown of every troubleshooting step, see our Cart Battery Not Working? Complete Troubleshooting Guide.
Charging Light Indicators Explained
Blinking during charging is different from blinking during use. Here’s a quick reference:
Normal Charging Behavior
When you plug in a working battery: The LED should turn on (usually red or orange) to indicate charging has started. It stays lit during charging and changes to green (or turns off) when complete. Some batteries blink slowly while charging — that’s normal for certain brands.
Problem Charging Indicators
Rapid blinking when plugged in: Something’s wrong. Try a different cable first (cables fail more often than batteries). Then try a different power source (wall adapter vs computer). Clean the charging port with compressed air and a toothpick.
No light when plugged in: Either the cable is bad, the power source is insufficient, the charging port is dirty, or the battery is completely dead. If completely dead, leave it plugged in for 15-20 minutes — some batteries take time to “wake up” from zero charge before showing any response.
Light turns on briefly then off: Likely a loose connection or failing cable. Try pressing the cable more firmly into the port, or try a different cable entirely.
For detailed charging instructions, see our How to Charge a 510 Battery Guide and How Long to Charge Guide.
When Blinking Means It’s Time to Replace
Keep Troubleshooting If:
- You haven’t cleaned the 510 connection yet
- The blinking started after attaching a new/different cart
- You haven’t tried a different cable or charger
- The battery is less than 6 months old
Replace Your Battery If:
- Blinking persists with no cart attached (internal fault)
- Blinking persists after thorough cleaning with multiple carts
- Battery won’t charge at all with any cable
- Battery body is physically damaged, swollen, or corroded
- Battery is over 12 months old with heavy use
- You’ve tried every fix in this guide and nothing works
🛒 Ready for a Reliable Replacement?
- No More Blink Codes: Yocan Kodo Pro — OLED screen shows plain-text status
- Proven Reliable: Cartisan Pillar — 650mAh, preheat, spring-loaded pin for consistent connection
- Ultra-Simple: CCELL M3 — No buttons, no settings, just inhale
- All-Day Power: Randy’s Inspo+ Plus — 1000mAh, LCD screen, stealth design
Frequently Asked Questions
Q: My battery blinks 3 times when I try to hit it. What’s wrong?
A: Three blinks almost always means a connection error — the battery can’t detect or properly communicate with the cart. Remove the cart, clean both contact points with a rubbing-alcohol Q-tip, gently lift the battery’s center pin if it’s pushed flat, and reattach finger-tight. This fixes the issue about 80% of the time.
Q: Why does my battery blink 10 times then shut off?
A: Ten blinks means dead battery on virtually every brand. Plug it in and charge it. If it won’t take a charge, try a different cable. If it still won’t charge after 30 minutes, the battery may be at the end of its lifespan.
Q: My battery blinks but I think it’s just changing voltage — how can I tell?
A: If the blink happens right after you click the button 3 times, it’s a voltage change confirmation — not an error. The LED color tells you the new setting (usually green = low, blue = medium, red = high). If the blink happens when you try to fire (hold the button and inhale), it’s an error. Context matters.
Q: Is it dangerous if my battery keeps blinking?
A: Blinking alone isn’t dangerous — it’s just the battery communicating. However, if blinking is accompanied by heat, a chemical smell, swelling, or hissing sounds, those ARE safety concerns. Stop using it, place it on a non-flammable surface, and dispose of it properly. See our 510 Battery Safety Guide.
Q: My brand isn’t listed here. How do I find my specific blink codes?
A: Start with the Universal Blink Codes section at the top of this guide — it applies to about 90% of batteries. Beyond that, check the manual that came with your battery, or search “[your brand] [your model] blink codes” online. Most brands follow the same general conventions: 3 blinks = connection error, 5 blinks = power toggle, 10 blinks = dead battery.
Q: Can I disable the blinking?
A: No — the LED is a built-in safety and communication system that can’t be disabled. If the blinking bothers you, batteries with OLED screens (like the Yocan Kodo Pro) display information as text instead of blink codes, which many people find less annoying. Or stealth batteries often have dimmed or hidden LEDs.
Q: My auto-draw battery’s light comes on by itself without me inhaling. Why?
A: Auto-draw sensors can be triggered by wind, movement, or oil leaking onto the sensor. Clean the 510 connection area thoroughly. If it fires randomly, remove the cart when not in use to prevent accidental activation. Persistent phantom firing usually means the sensor is contaminated or failing — it may be time for a replacement.
Continue Learning
- Cart Battery Not Working? Complete Troubleshooting Guide — Every problem, every fix
- Clogged Cart Fix Guide — Fix restricted airflow and blocked carts
- How to Charge a 510 Battery Safely
- How to Turn On a Vape Battery
- How to Unlock a Vape Pen
- Best Voltage Settings for Vape Cartridges
- Button vs Auto-Draw Cart Batteries
- How to Use a Cart Battery: Step-by-Step
- 510 Battery Maintenance & Care Guide
